Your Reliable Supplier For Welded Wire Mesh in China.
Welded Wire Mesh

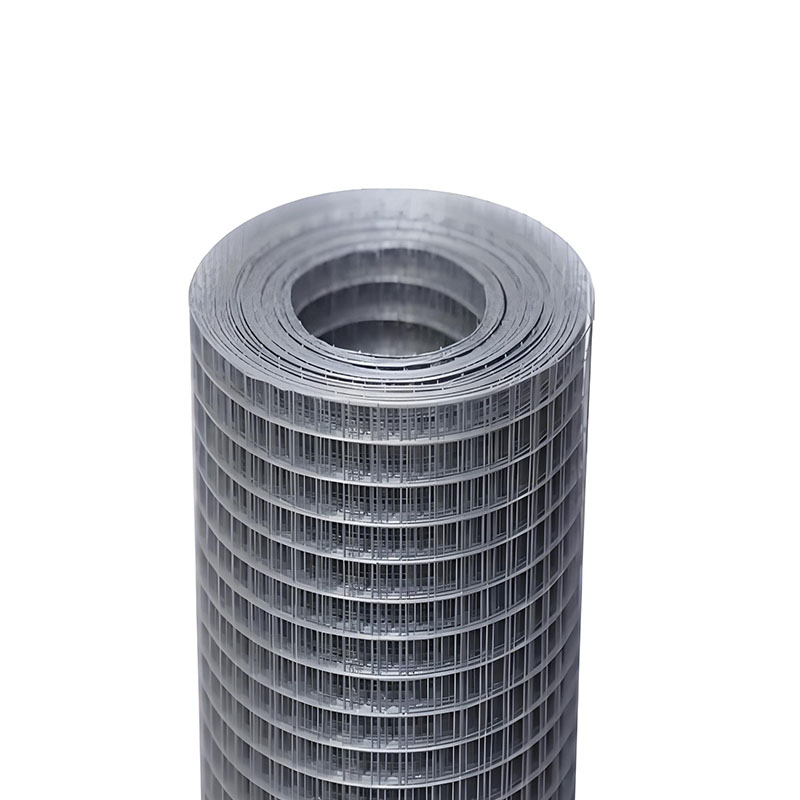

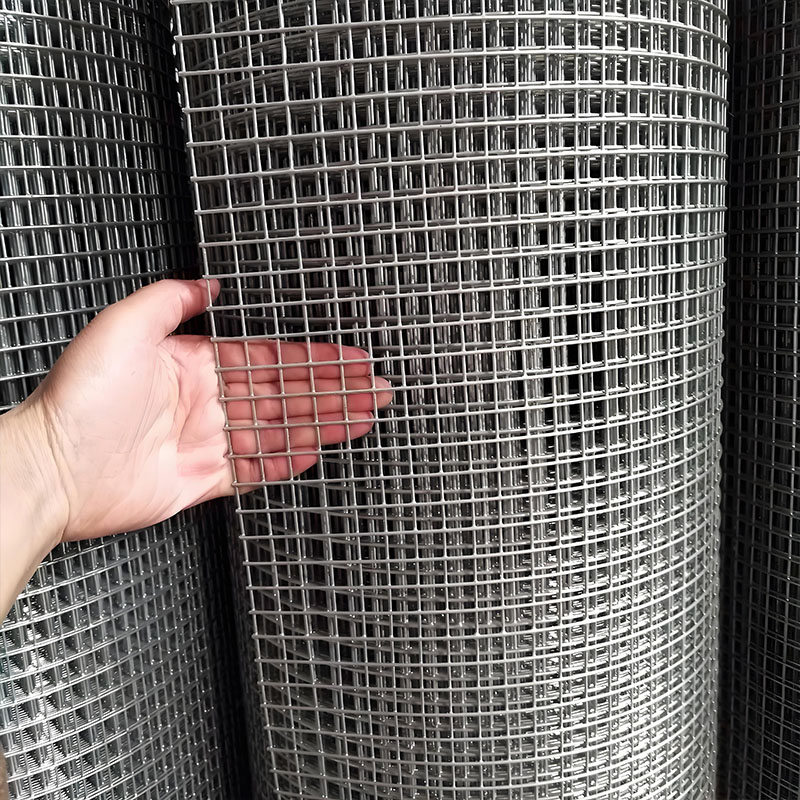

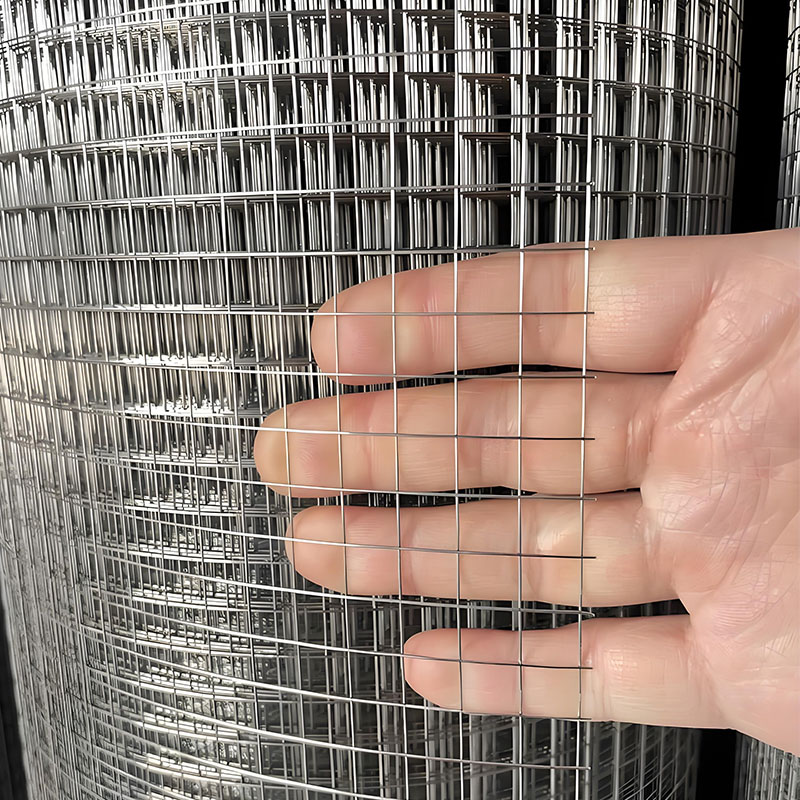

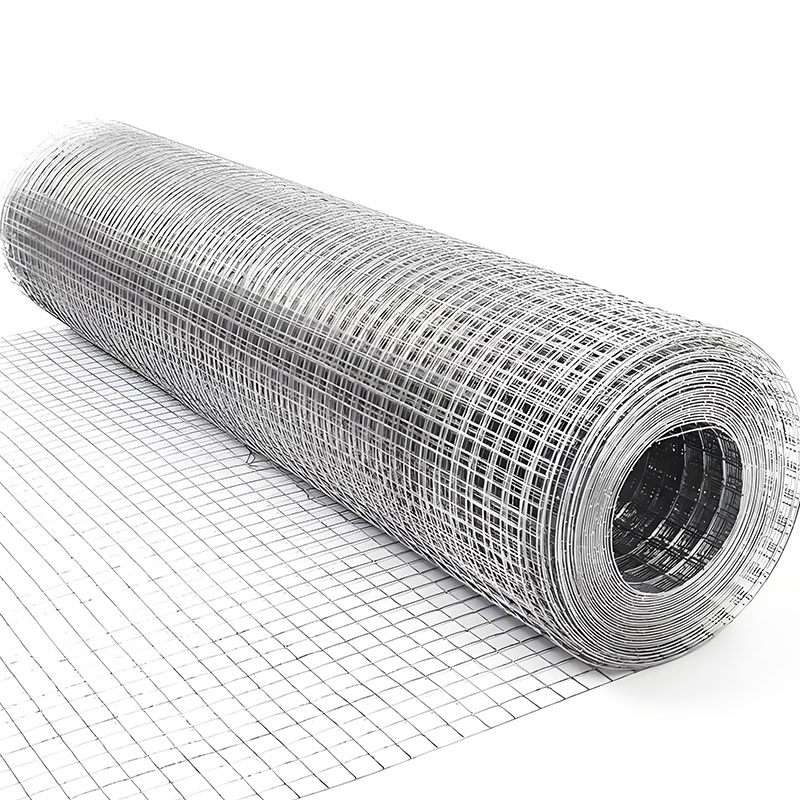

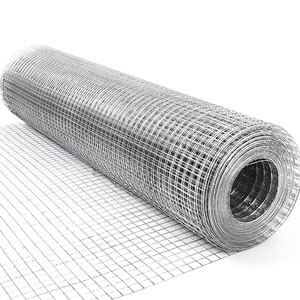

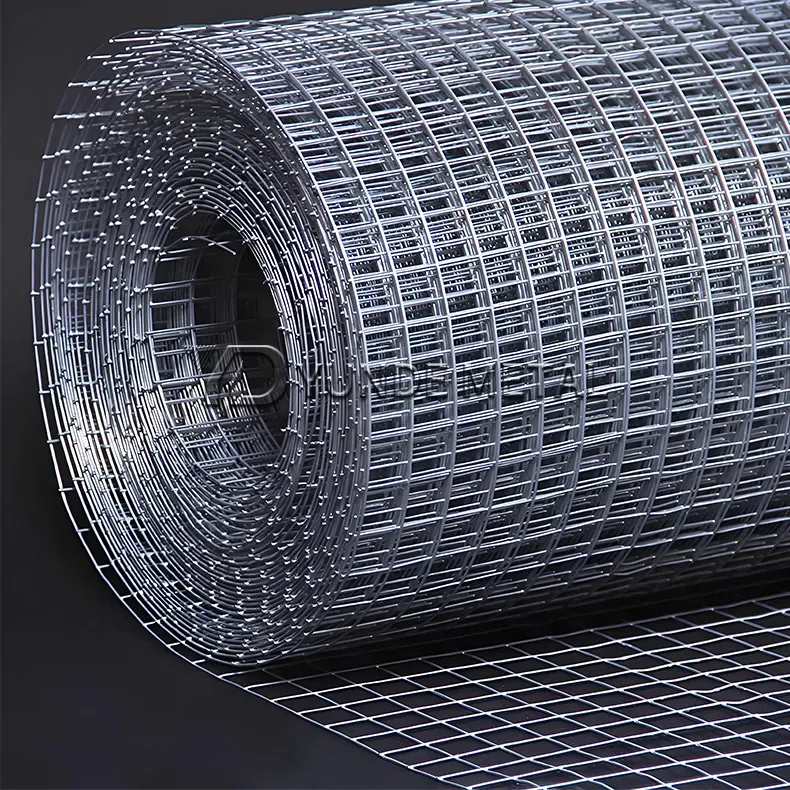

What is Welded Wire Mesh?

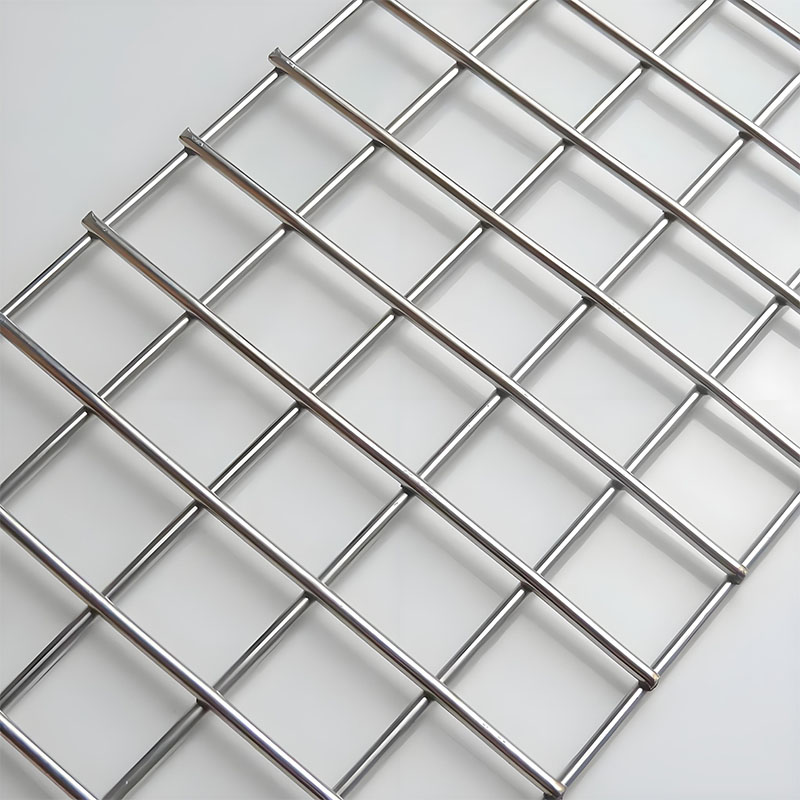

Welded Wire Mesh is a rigid wire fabric made by resistance spot welding horizontal and vertical wires at their intersections. It offers strong welds, uniform openings, and higher tensile strength/rigidity than woven mesh. Fully customizable in material, wire diameter, mesh size, and surface treatment, it is widely used in construction, agriculture, and industrial applications.

Product Catalog PDF
REQUEST A QUOTE  CONTACT US

Welded Wire Mesh Applications

Welded Wire Mesh is a versatile, cost-effective material valued for its strength, uniformity, and ease of installation. Key applications include:

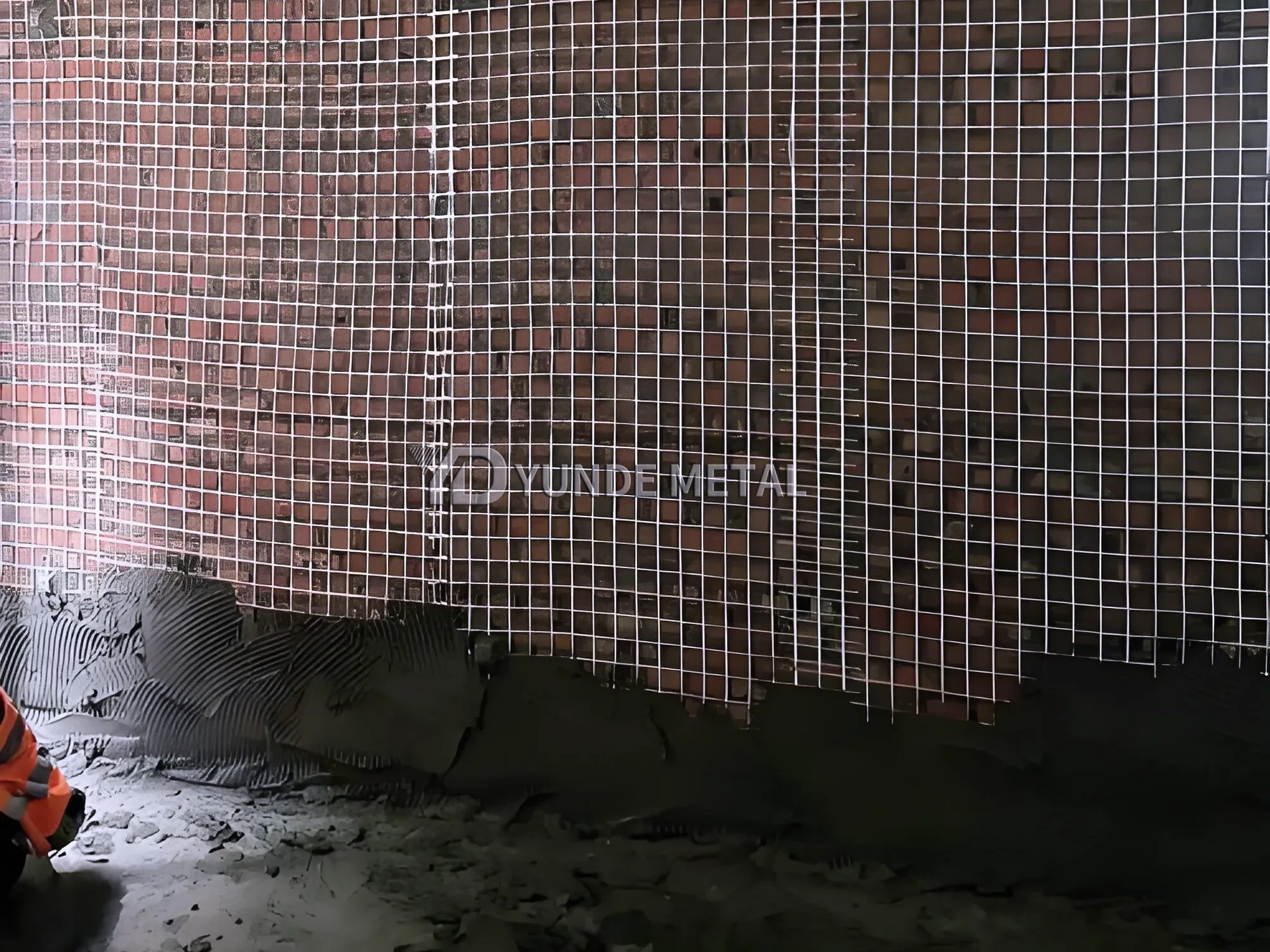

1.Construction

  • Concrete Reinforcement: Embedded in slabs, walls, and foundations.
  • Stucco/Plaster Backing: Provides a stable base for exterior/interior finishes.
  • Fencing & Barriers: Security fences, perimeter fencing, and temporary hoardings.

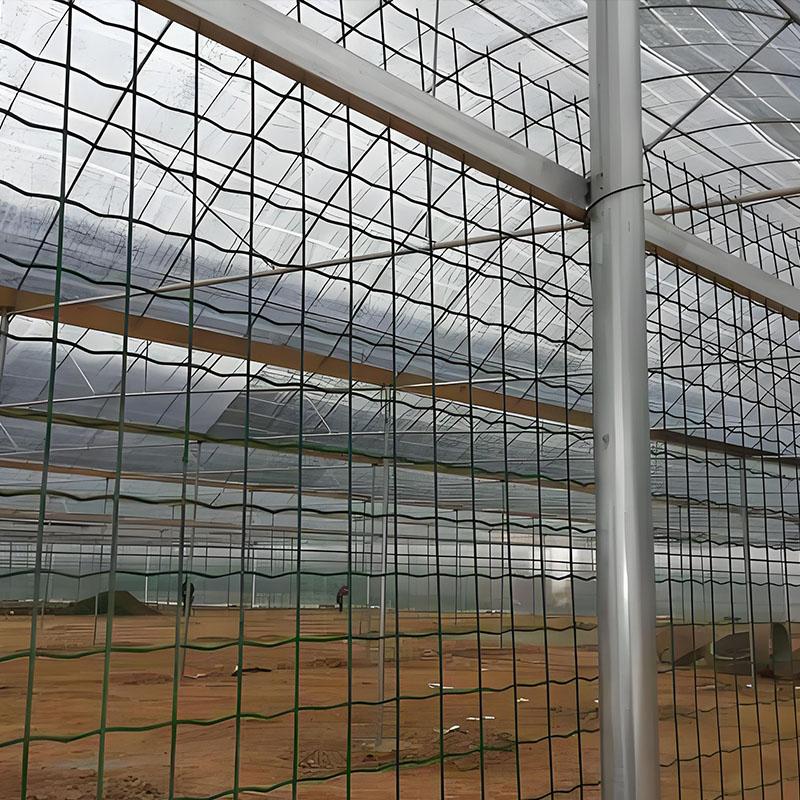

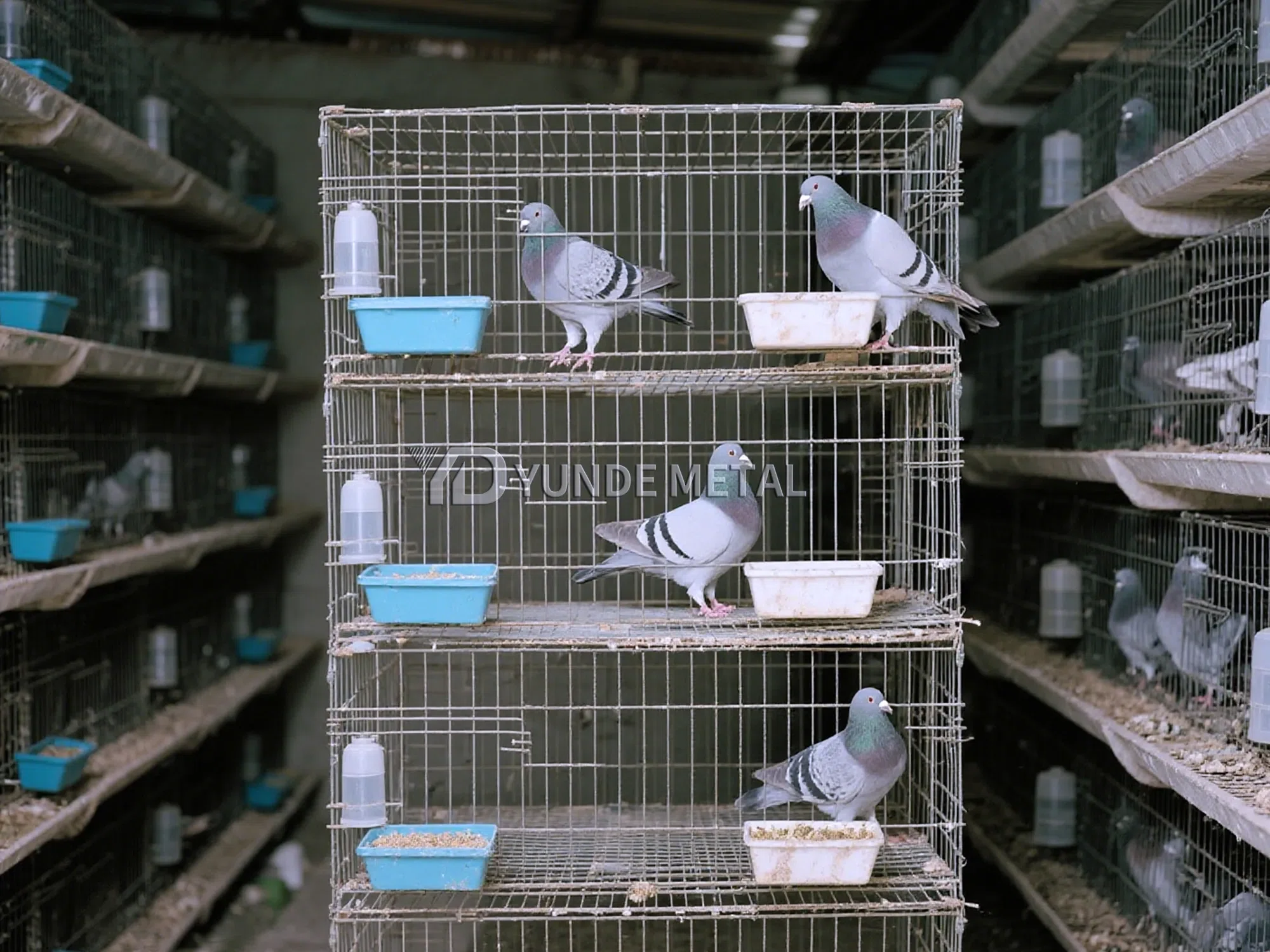

2.Agriculture & Farming

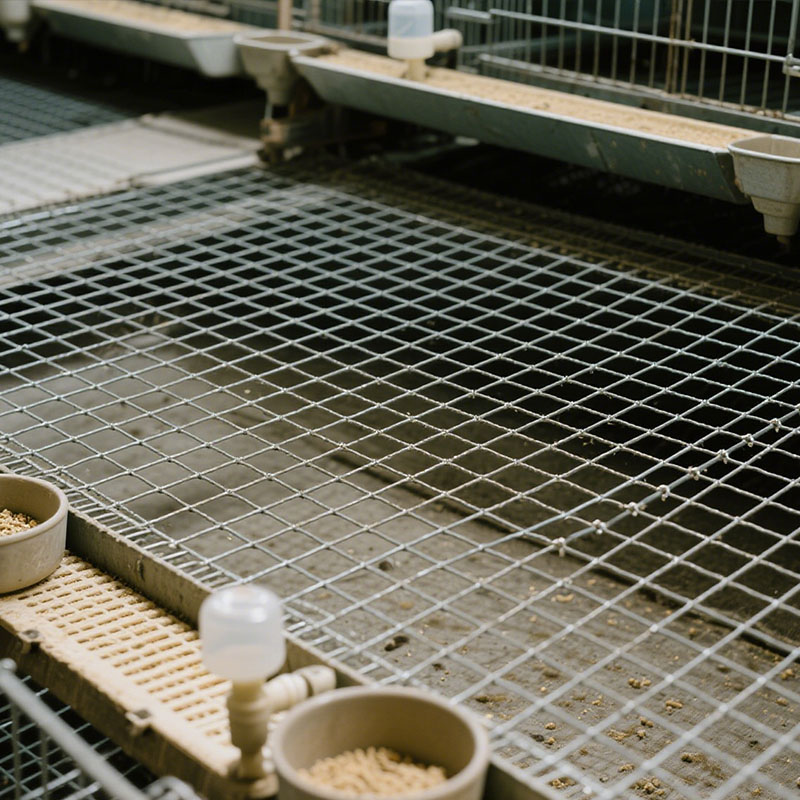

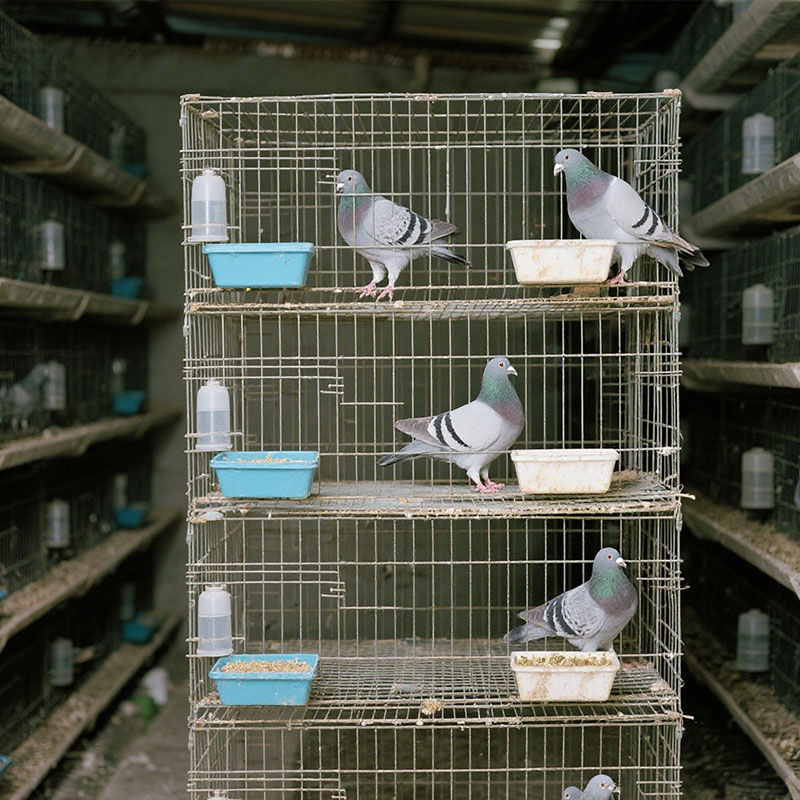

  • Animal Enclosures: Cages for poultry, rabbit hutches, and livestock fencing.
  • Plant Supports: Trellises for climbing plants and garden fencing.

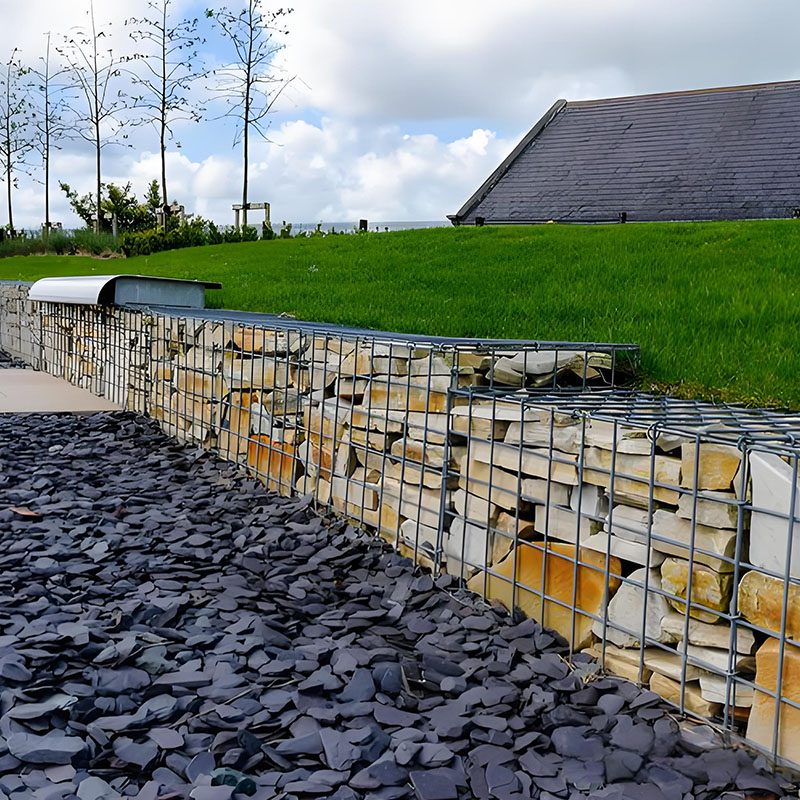

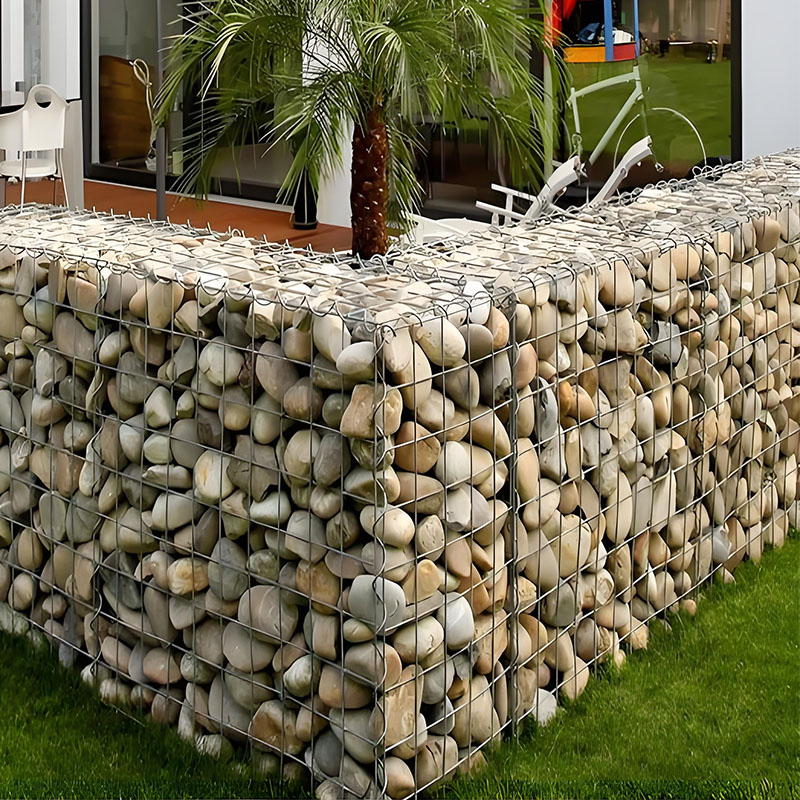

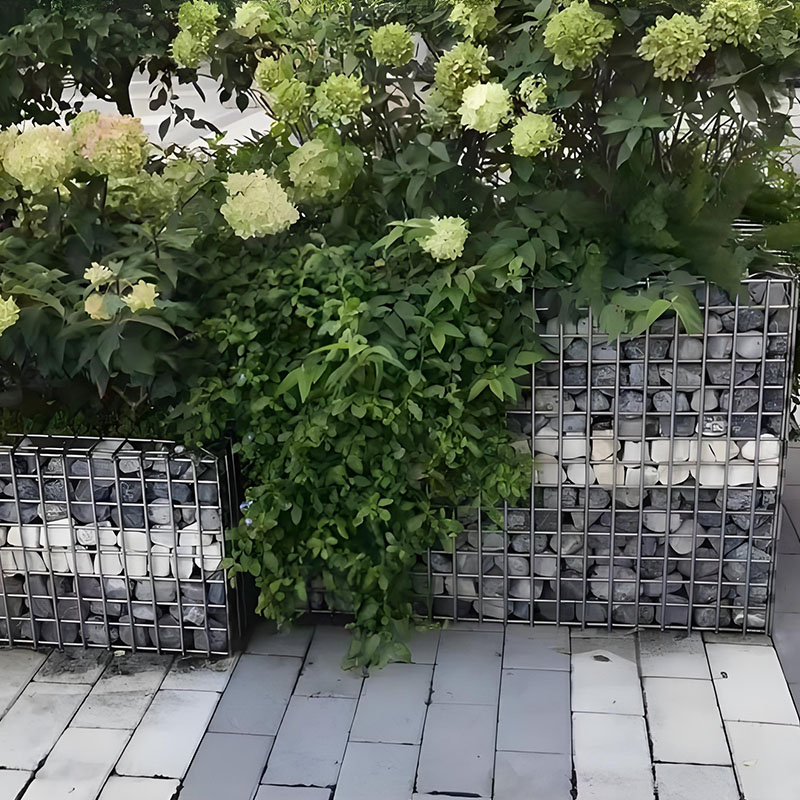

  • Soil Erosion Control: Used in gabions and retaining walls.
Agriculture & Farming

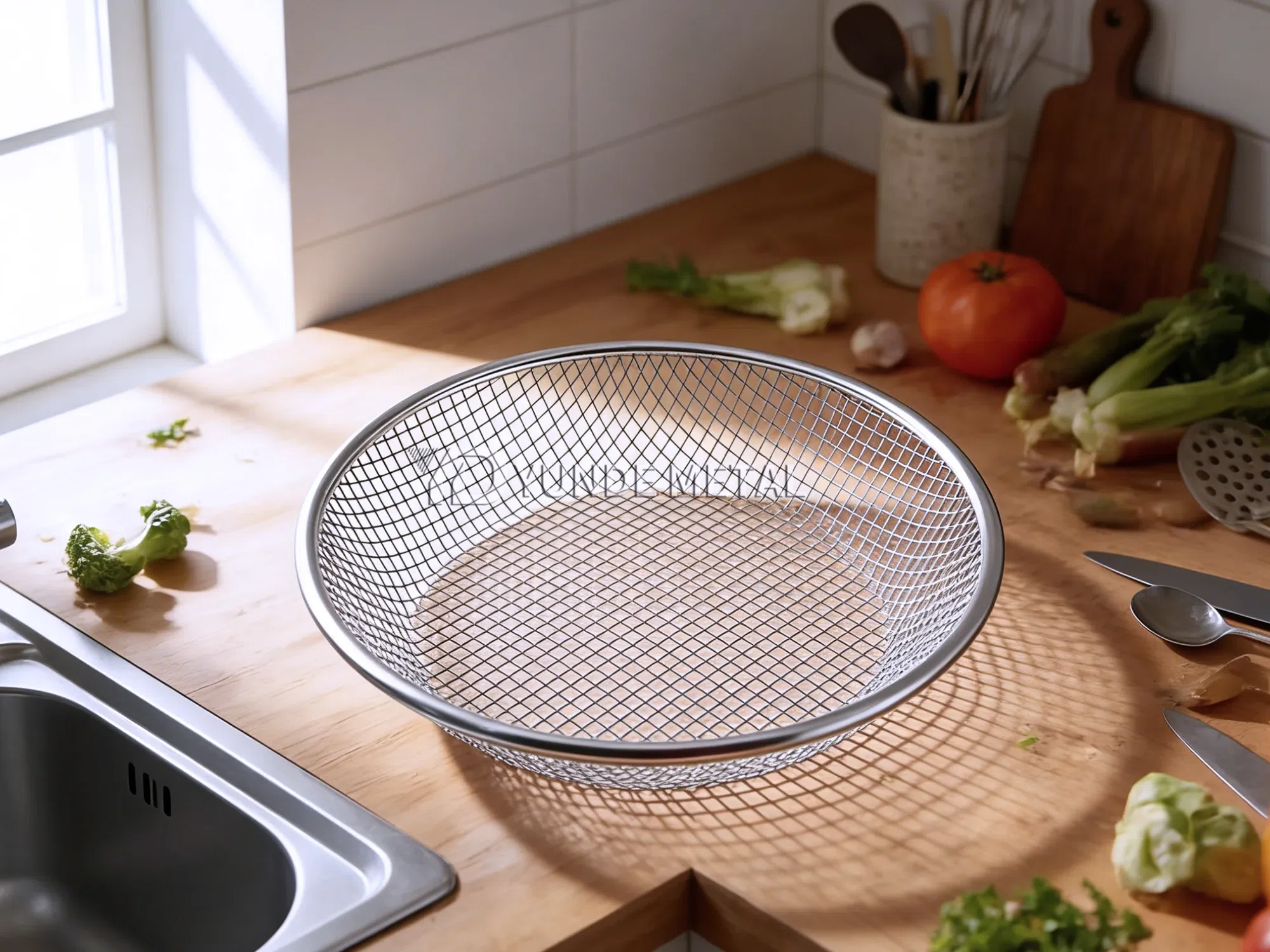

3.Industrial & Manufacturing

  • Machine Guards: Safety barriers around equipment.
  • Shelving & Racking: Reinforced panels for storage systems.
  • Filtration & Screening: Screens for separating materials.

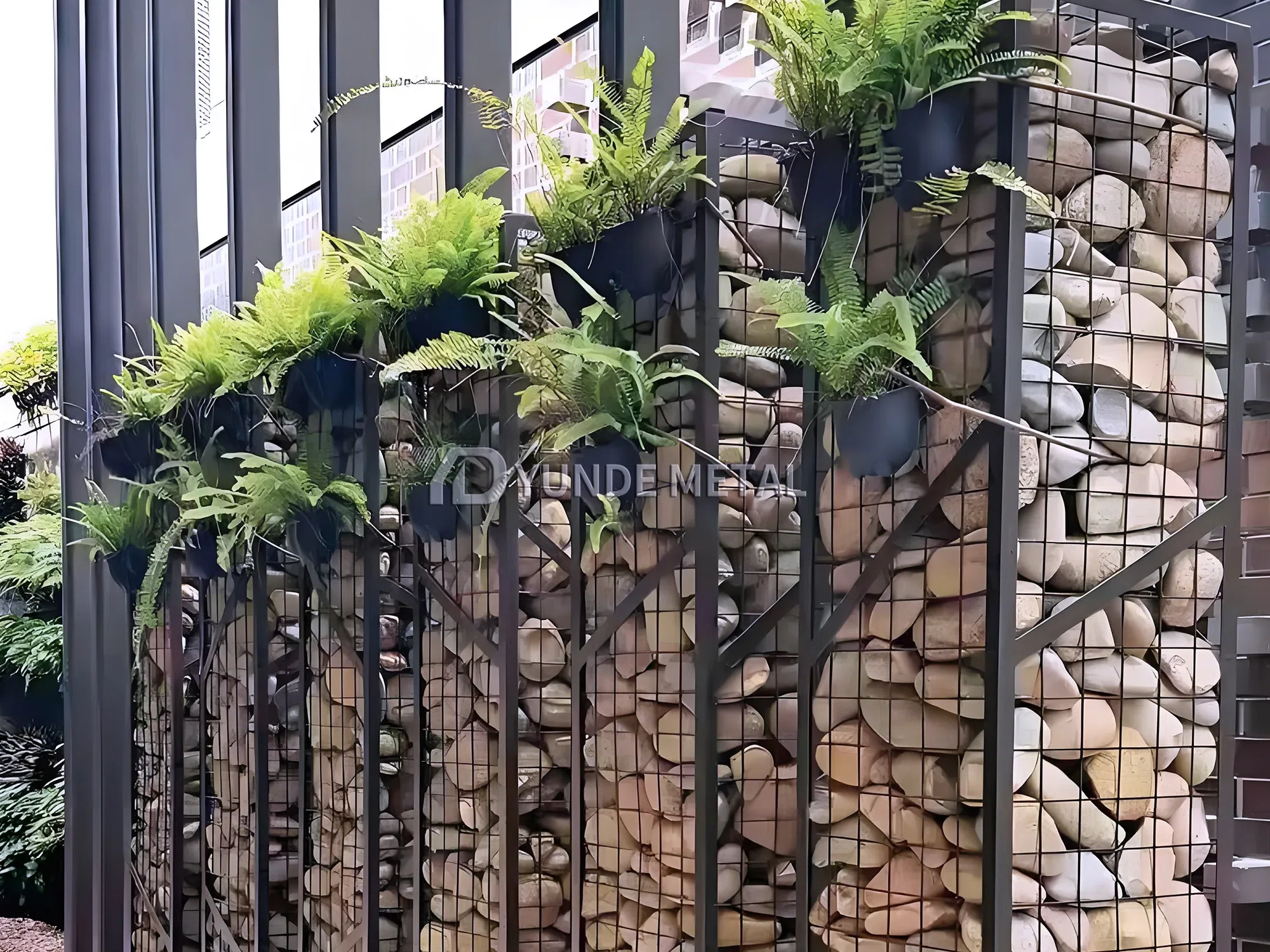

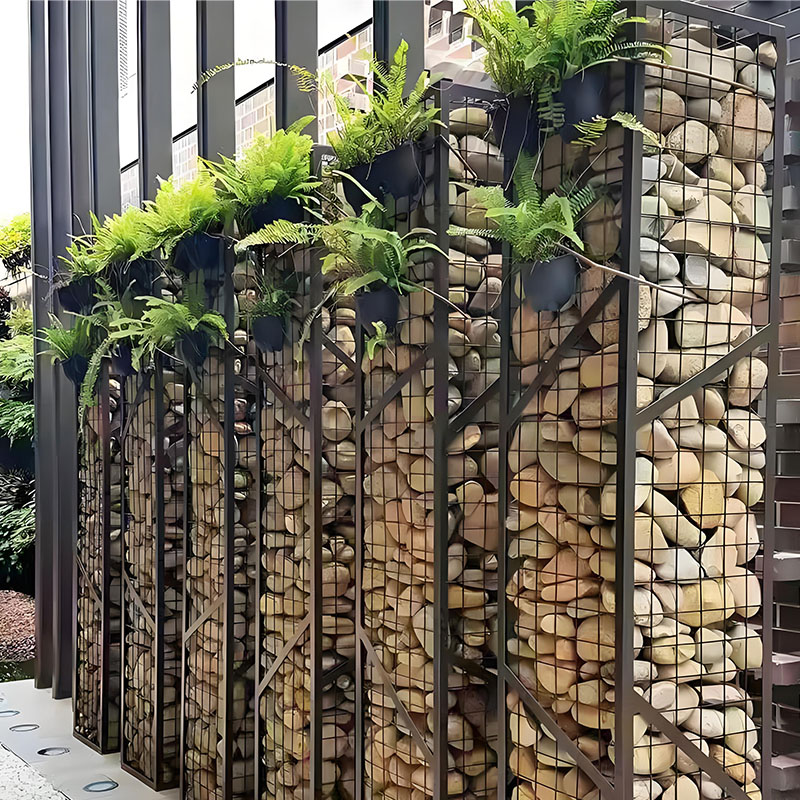

4.Residential & DIY

  • Window/Door Screens: Insect protection and ventilation.
  • Pet Cages & Enclosures: Customizable enclosures for pets.

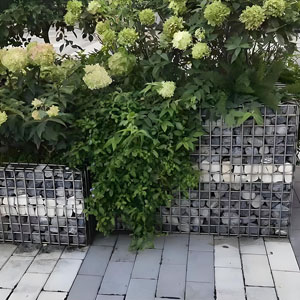

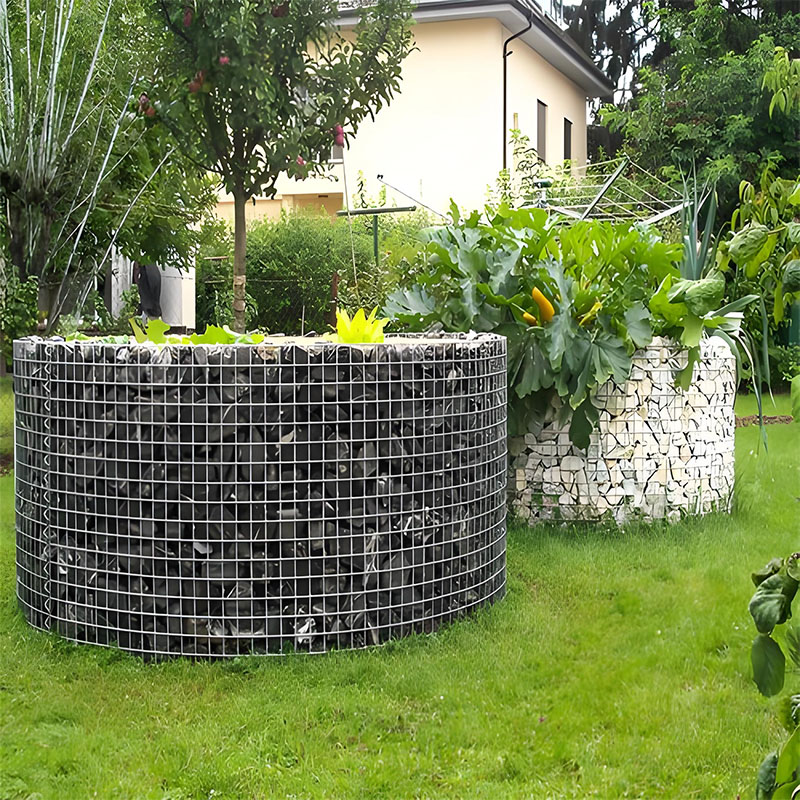

  • Garden Beds & Compost Bins: Durable frames for raised gardens.
Residential-DIY

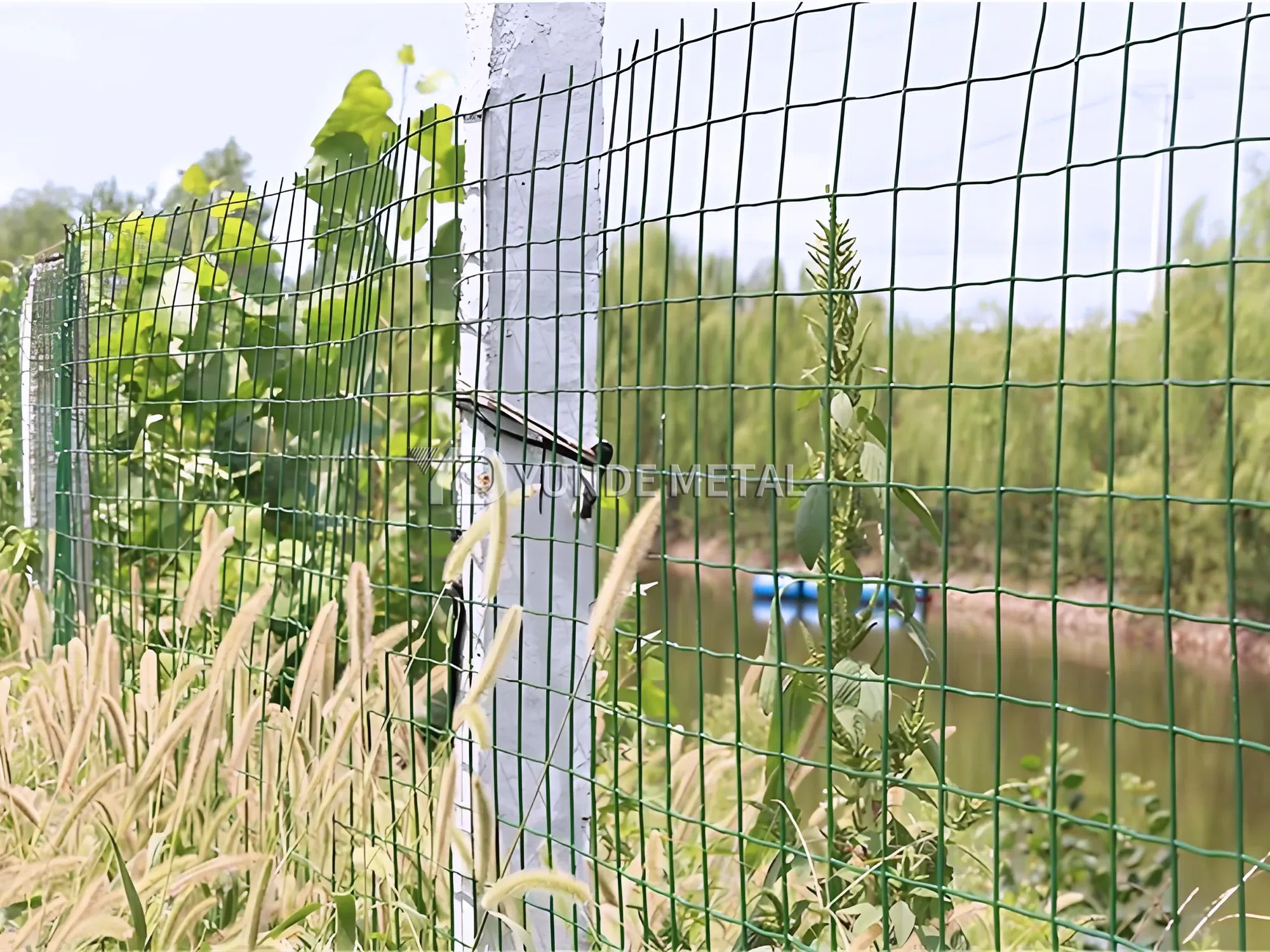

5.Security & Safety

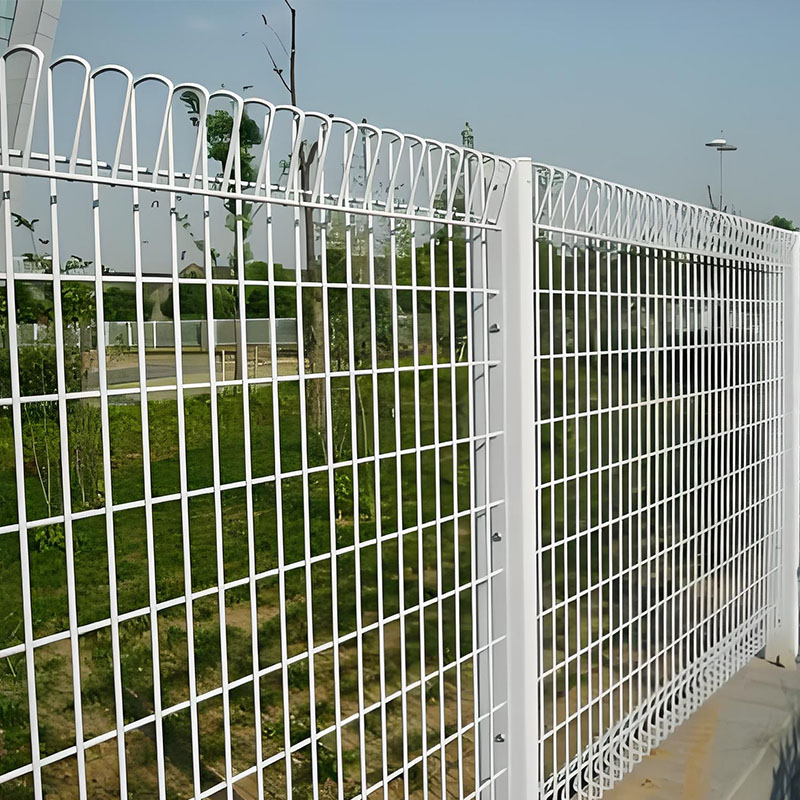

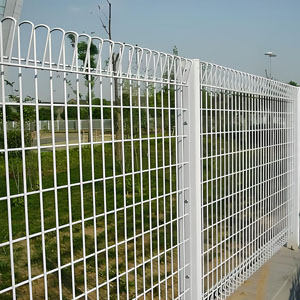

  • Security Fencing: Perimeter fencing for commercial and residential properties.
  • Machine Guards: As mentioned in Industrial.
Security & Safety

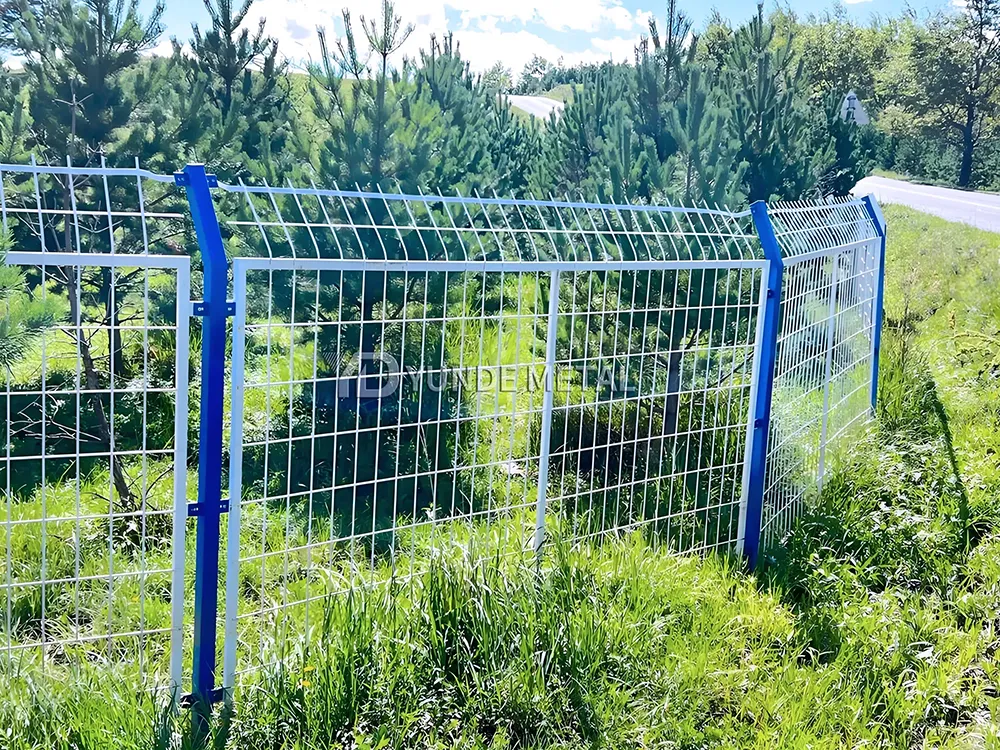

6.Infrastructure & Transportation

  • Bridge & Highway Barriers: Reinforcement for concrete barriers.
  • Railway Fencing: Security fencing along railway lines.
Infrastructure & Transportation

Welded Wire Mesh Manufacturing Process

The production of Welded Wire Mesh involves a series of automated steps to ensure precision, consistency, and strength. Here’s a simplified overview:

Wire Drawing & Straightening

Raw wire coils (low carbon steel, stainless steel, aluminum) are drawn through dies to achieve the desired diameter.
The wire is then straightened and cut to length using precision machinery.
Read More

Mesh Formation

Wire Feeding: Straightened wires are fed into a welding machine, where horizontal (warp) and vertical (weft) wires are aligned at right angles.
Read More

Resistance Spot Welding

Electrodes apply pressure and electrical current at each intersection, melting the wire surfaces to form strong, permanent welds.
Read More

Cutting & Sizing

The continuous mesh sheet is cut into standard sizes (e.g., 4'x8', 5'x10') or custom dimensions using automated shears or lasers. Edges may be trimmed for uniformity.
Read More

Surface Treatment

Galvanizing: WWM is dipped in molten zinc (hot-dip) or electroplated (electro-galvanizing) to prevent rust.
PVC Coating: Galvanized mesh is coated with PVC or PE plastic for corrosion resistance and color options (green, black).
Stainless Steel Passivation: Removes surface contaminants to enhance corrosion resistance.
Read More

Quality Control & Packaging

Weld strength, mesh size, and dimensional accuracy are inspected.
Approved mesh is packaged in rolls or sheets, labeled, and prepared for shipping.
Read More

Specifications of Welded Wire Mesh Available from YunDe

Common Materials for Welded Wire Mesh
Low Carbon Steel Wire
Hot-Dipped Galvanized Steel Wire
Electro-Galvanized Steel Wire
Stainless Steel Wire (Common grades include 304 and 316)
PVC Coated Wire / Plastic Coated Wire
Common Specifications

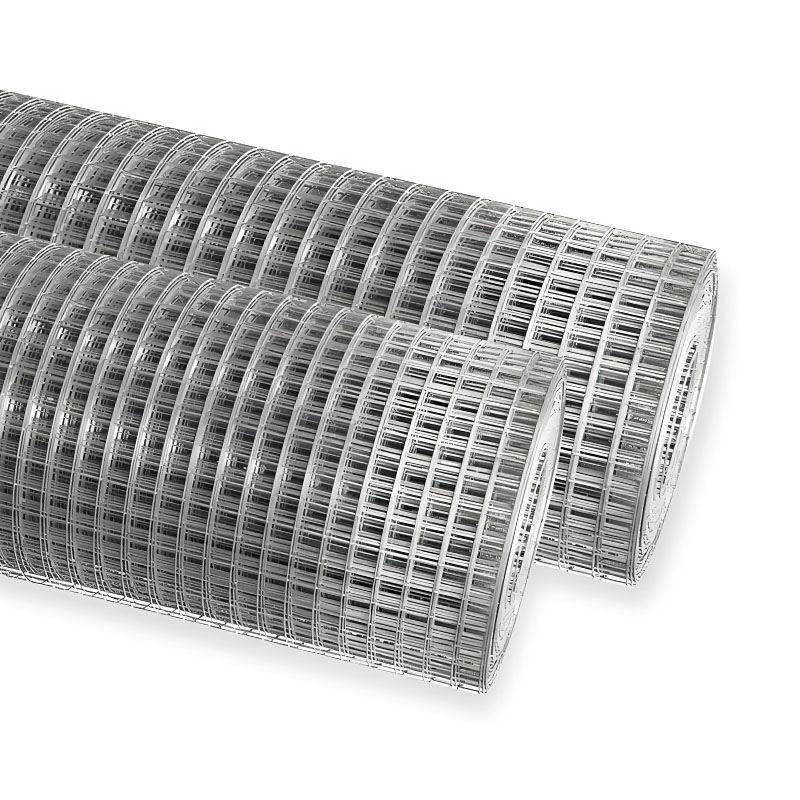

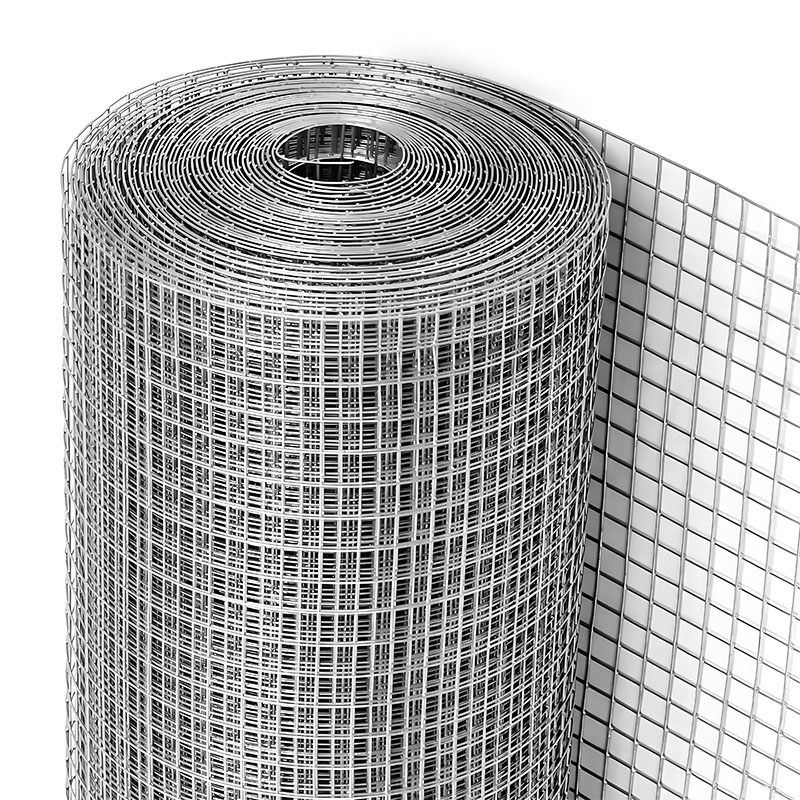

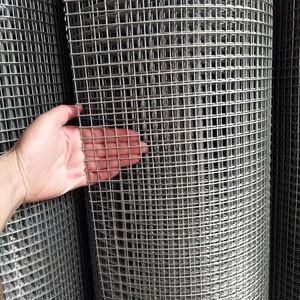

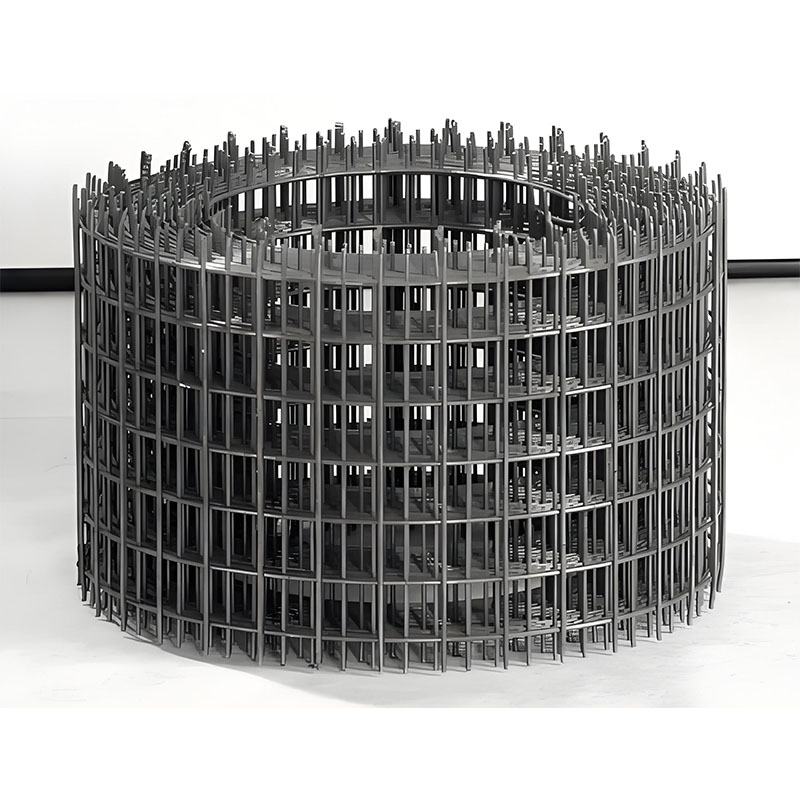

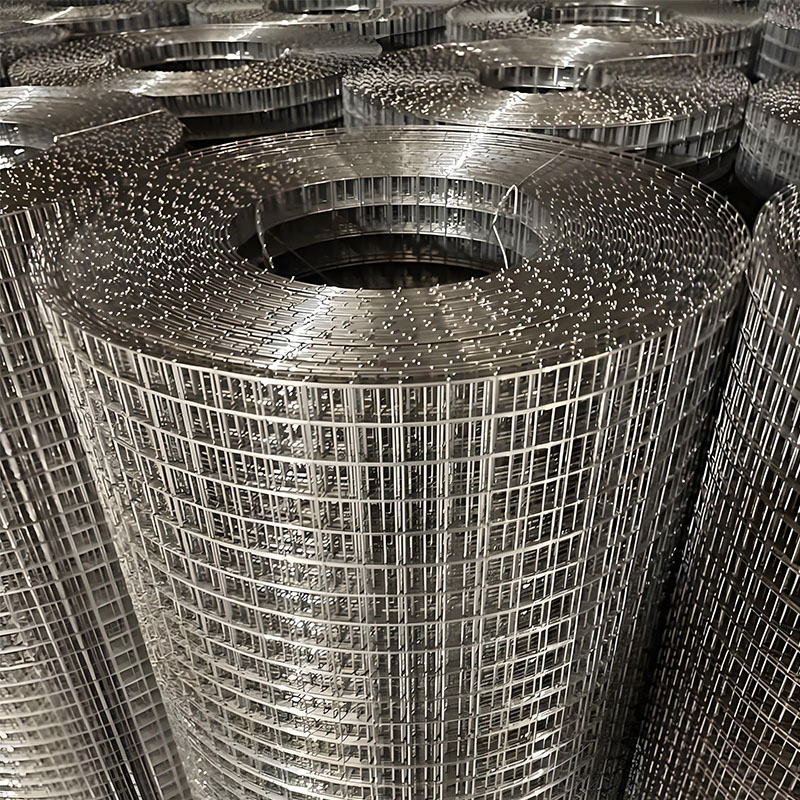

Table 1： Welded Wire Mesh Rolls Specification
Mesh Opening Wire Diameter <BWG> Rolls Size
In inch In metric unit (mm)
1/4” x 1/4” 6.4mm x 6.4mm 22,23,24 1mx30m,3x100’
4x100’,5x100’,6x100’
3/8” x 3/8” 10.6mm x 10.6mm 19,20,21,22
1/2” x 1/2” 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8” x 5/8” 16mm x 16mm 18,19,20,21,
3/4” x 3/4” 19.1mm x 19.1mm 16,17,18,19,20,21
1” x 1/2” 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2” x 1-1/2” 38mm x 38mm 14,15,16,17,18,19
1” x 2” 25.4mm x 50.8mm 14,15,16
2” x 2” 50.8mm x 50.8mm 12,13,14,15,16

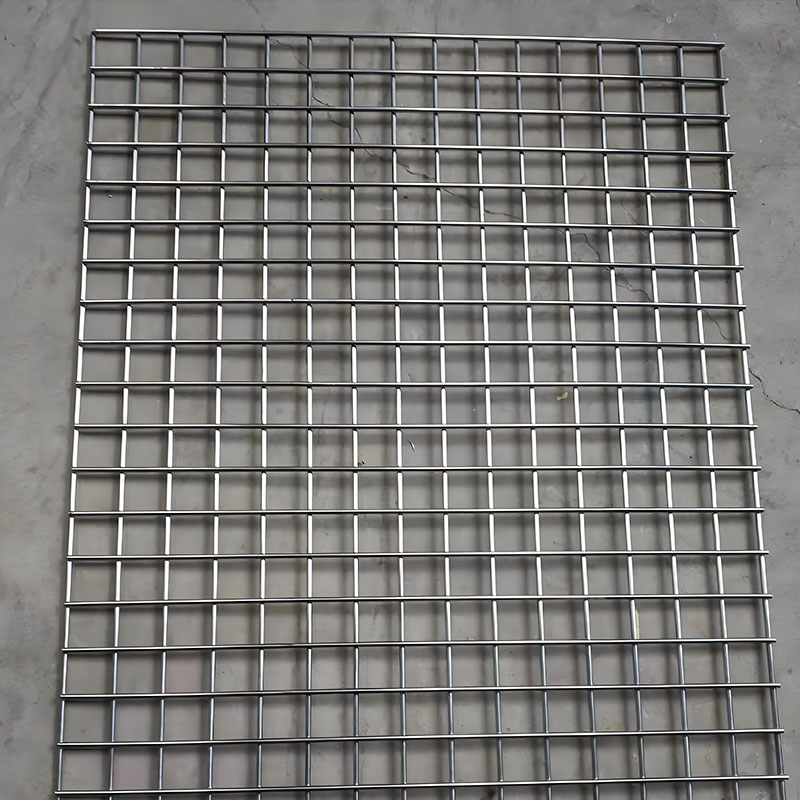

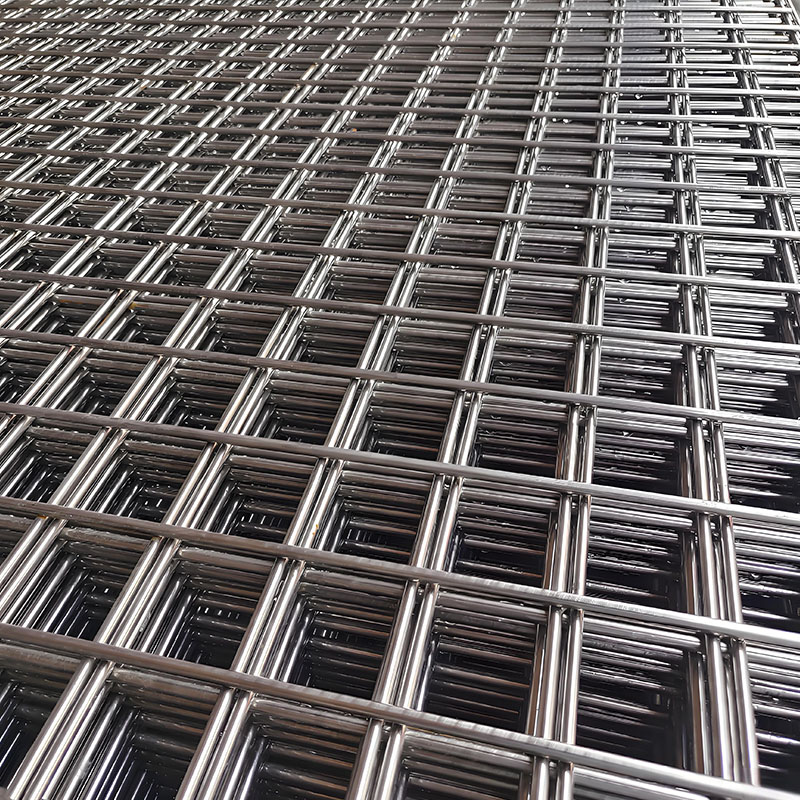

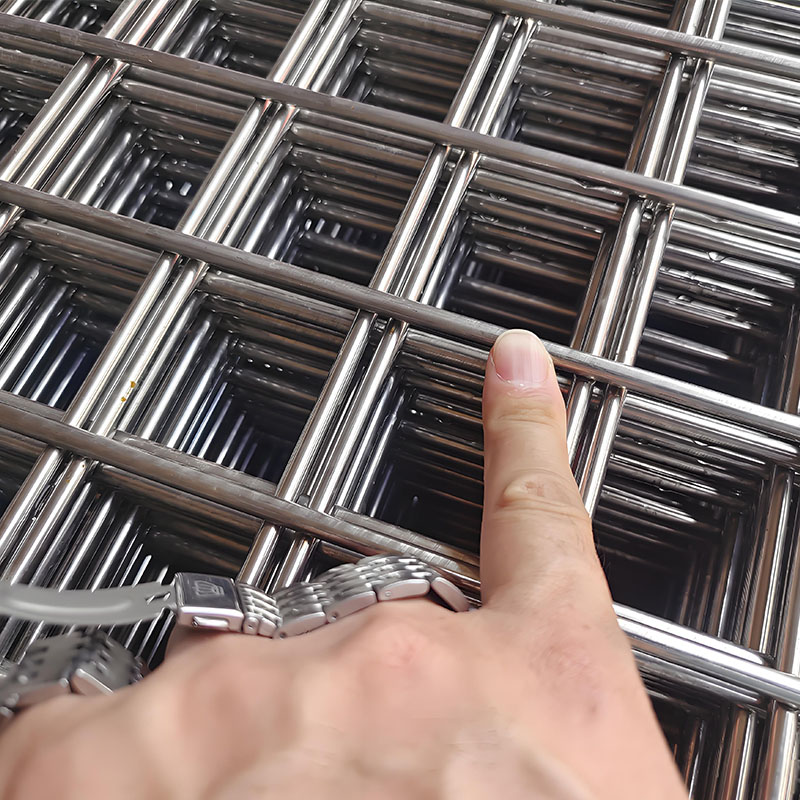

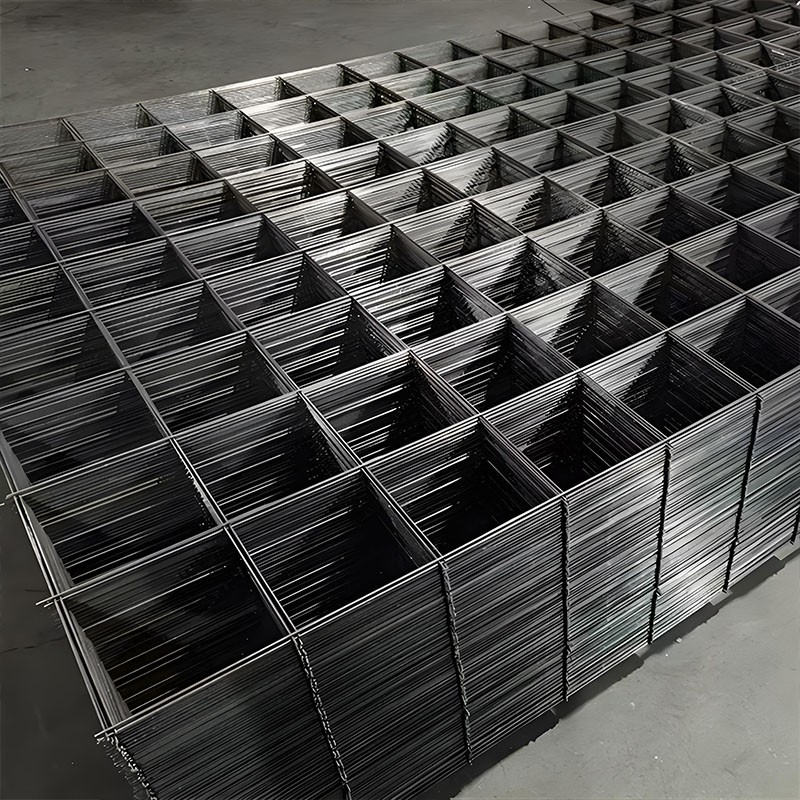

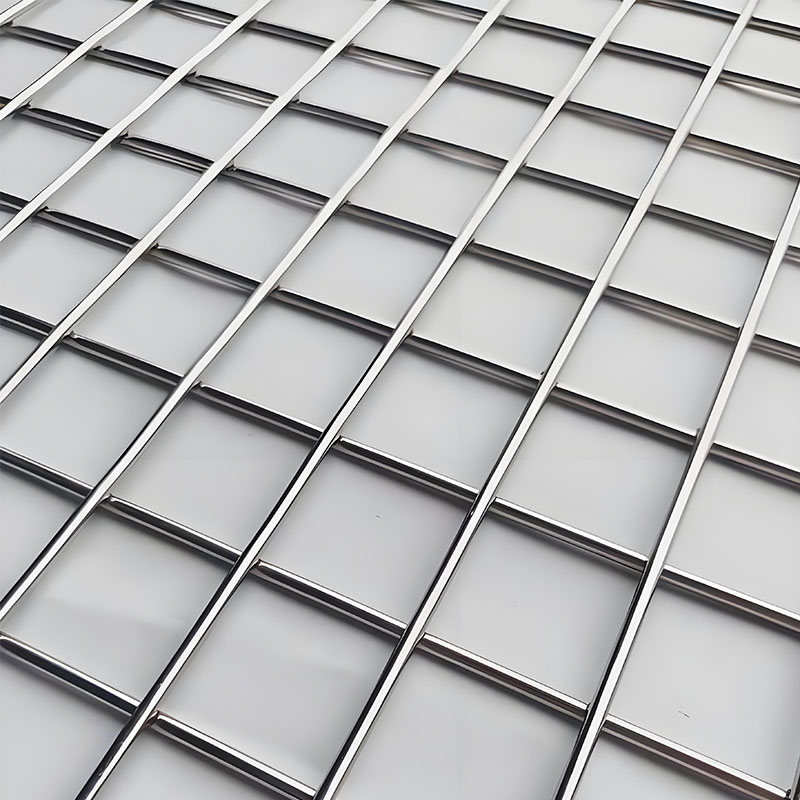

Table 2: Welded Wire Mesh Panels Common Used Specification List
Mesh Opening Wire Diameter (mm) Panel Size
In inch In metric unit (mm) 3x6' 4x8',5x10',6x12' 7x15',tmx2m,15mx3m,2mx4m and customized
1/2"x1/2" 12.7mm x 12.7mm 10mm-2.0mm
1" x 1" 25.4mm x 25.4mm 15mm-2.5mm
1-1/2" x 1-1/2" 38.1mm x 38.1mm 2.0mm-5.0mm
2" x 2" 50.8mm x 50.8mm 2.0mm-6.0mm
3"x3" 76.2mm x 76.2mm 3.0mm-7.0mm
4"x4" 101.6mm x 101.6mm 3.0mm-8.0mm
5"x5" 127mm x 127mm 4.0mm-9.0mm
6"x6" 152.4mm x 152.4mm 4.0mm-10.0mm
3"x6" 76.2mm x 152.4mm 4.0mm-9.0mm
4"x6" 101.6mm x 152.4mm 4.0mm-9.0mm
Note:Only some specifications are shown. Other specifications can also be customized according to customer requirements.
